| 是否进口： | 否 | 产地： | / |
|---|---|---|---|
| 加工定制： | 是 | 品牌： | 瑞典Friborg |
| 型号： | 5890 | 类型： | IEC60950-1斜面测试 |
| 外形尺寸： | /mm | 重量： | /Kg |
| 产品用途： | 等相关要求制造 | 规格： | / |
IEC60950-1斜面测试装置 稳定性能性测试仪
***的斜面测试装置是由瑞典公司Friborg根据 IEC60950-1等相关要求制造

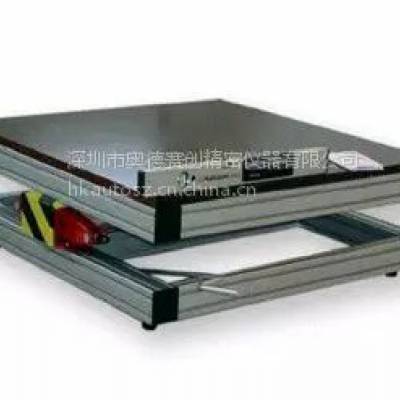

Inclined Plane: Model 5890 Reference to: IEC60950-1
The purpose of the incline plan testing is to place an apparatus - the sample - on a horizontal platform and to turn the platform into different angles - normally for testing in the range from 0 to 15 degrees
IEC standards specifies some different angles to used for different standards - read the standard
Technical specifications
1. Inclined plan possible to vary inclined plane steeples Angles 5 deg. to 15 deg.
2. Angles are set by a mechanical lift and by a digital angle gauge
3. The test surface is 800x800 mm on 20 mm plywood
4. The frame work is built up on aluminium profiles
5. The equipment is floor standing
6. Feet are adjustable
7. Carries 100 kg
8. Included is an digital angle gauge -accuracy ± 0,1 deg
9. Certificate issued by Friborg Test Technology
10. Weight: App 60 kg
11. Dimensions: 900x900x350 mm (LxWxH)
我公司长期提供【供应IEC60950-1斜面测试装置 进口稳定性能性测试仪】，如果您对我们的【供应IEC60950-1斜面测试装置 进口稳定性能性测试仪】感兴趣，请随时拨打下方的电话，点击留言或QQ与我交谈。联系我时，请说明是在供应商网上看到的，谢谢！
